nec 2510a firmware for nec 2500a

DDay · **Joined:** Tue May 11, 2004 2:01 pm **Posts:** 6

There is no go with those links either.

Mail me the pictures and i

Puma · **Posted:** Tue May 11, 2004 2:07 pm

whats the 10x all about, i am wrong thinking that is saying max cdr writing speed is 10x

Puma · **Posted:** Tue May 11, 2004 2:08 pm

under the normal 2500a, it has cd speed 32x which is the write speed to a cdr

Cynric · **Posted:** Tue May 11, 2004 2:29 pm

Jackass wrote:

Well the pictures were showing before, I suspect he's removed them to correct them with photoshop or something similar.

Sorry for the cynicism. :wink:

as he hosted the pics on yahoo briefcase and he directly copied the link from there, they were shown as long as his session was still valid. now it has expired and we can't see them anymore

did the pics tell something about the cache size?

Puma · **Posted:** Tue May 11, 2004 2:34 pm

from the pic record buffer 2048kb

The Sack · **Joined:** Thu Jan 08, 2004 12:47 pm **Posts:** 74

yes 2mb which is the size on a real 2510a

fualex · **Joined:** Sat Apr 12, 2003 10:06 am **Posts:** 4

nec 2100 <==> nec 2510

https://gullfoss2.fcc.gov/prod/oet/forms/blobs/retrieve.cgi?attachment_id=405952&native_or_pdf=pdf

Jackass · **Posted:** Tue May 11, 2004 2:43 pm

Try these links now

http://club.cdfreaks.com/attachment.php?attachmentid=3708

http://club.cdfreaks.com/attachment.php?attachmentid=3709

DDay · **Joined:** Tue May 11, 2004 2:01 pm **Posts:** 6

Here are the pictures:

and

lastdon · **Joined:** Thu Apr 15, 2004 6:00 am **Posts:** 67

so from that pdf file above it shows that the 2510A is really based on the 2100 equipment?

so it's really not the 2500 = 2510

Cynric · **Posted:** Tue May 11, 2004 2:52 pm

hmm... looks quite like my 2500a, the only different things are 32x read, 10x (!?) times write and of course the DL-feauture.
maybe it won't be such a big problem f

[_chef_] · **Posted:** Tue May 11, 2004 2:58 pm

Firmware Version: K0P2

I think that gives input for more speculations...
A newer Infotool should also display something about DL abilities.

The Dangerous Brothers · **Joined:** Tue Sep 16, 2003 11:50 pm **Posts:** 2779

abubin's 2510A K0P2 with patched binaries and flasher. http://tdb.rpc1.org/#ND2510A

Brother Vlad

Edit: We removed the hard link, we may well elimate it shortly, so if you quoted it please point to the page anchor instead.

DeadMan3000 · **Joined:** Thu Apr 08, 2004 8:44 pm **Posts:** 110

The RPC1 is what makes me wonder. If it was stock 2510 it would be RPC2 surely. Prank?

Also Nero Info Tool is not so hot. Would prefer a DVDInfoPro check myself.

EDIT: You move fast! NOW I know why it's RPC1

konsolen · **Joined:** Sun Jun 01, 2003 1:46 pm **Posts:** 220

whats the difference between the fast and the org. bin?

DeadMan3000 · **Joined:** Thu Apr 08, 2004 8:44 pm **Posts:** 110

Original, fast (Riplock removed) and region free (also with riplock removed I presume)

DDay · **Joined:** Tue May 11, 2004 2:01 pm **Posts:** 6

Some more pictures, posting links instead of direct to the board to save some bw:

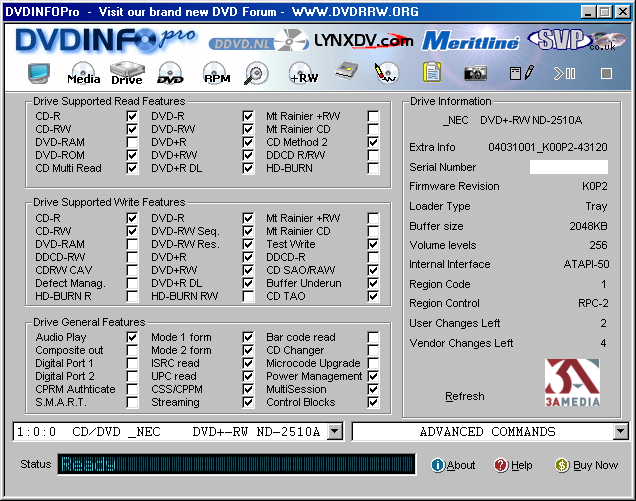

This is after i flashed my NEC 2500a

Updated to latest dvdinfo pro (2.47) so DL i init too

http://w1.515.telia.com/~u51509394/2510.jpg

and

http://w1.515.telia.com/~u51509394/nero.jpg

Quathuul · **Posted:** Tue May 11, 2004 3:39 pm

Has anybody flashed a 2500a to 2510a or is it a 2100 to 2510a???

Or are the pictures even from an original 2510a???

Bubba · **Joined:** Fri Dec 07, 2001 8:17 pm **Posts:** 39

I'm going to flash it right now. Wish me luck... :-)

redfive19 · **Joined:** Wed Mar 26, 2003 5:00 am **Posts:** 32

I think you need the newest version of DVDInfoPro to see the +R DL.

-redfive

CDRKILLER · **Joined:** Sun Dec 14, 2003 2:57 pm **Posts:** 14

Please can you say me how to flash the drive. I tried with a boot disc and your tool but the file is too big for my floppy.
Is there another method to flash.
My System runs on NTFS so just unzipping to harddisk won't help.

Greets
CDRKILLER

[_chef_] · **Posted:** Tue May 11, 2004 3:58 pm

Use a second disk for firmware & flasher if you cannot fit them on one disk.

CDRKILLER · **Joined:** Sun Dec 14, 2003 2:57 pm **Posts:** 14

Thanks Chef... wish me luck

... only poor pupil

...

The Dangerous Brothers · **Joined:** Tue Sep 16, 2003 11:50 pm **Posts:** 2779

The 2510A has a 2MB buffer. Why would it need to be bigger, DL goes at 2.4X?

The 2100A is the original 2x00A series drives, all others derive from it. The patched versions should work on a 2100A, but there doesn't seem much point in everyone flashing this firmware unless you have DL media and software to burn such media. We'd much rather see one person with media try it, than 100 me too's who don't.

The firmware we received from abubin was RPC2, can't explain why the previous screen shots indicate RPC1.

Brother Vlad

abubin · **Joined:** Thu Aug 15, 2002 2:22 am **Posts:** 12

guys, sorry for the broken picture link as i didn't have time to think where to upload them. I just got back from work and capture the printscreen and upload to yahoo. Didn't realize about the session thingie.

Anyway, thanks fo DDay for uploading the pictures.

FYI, I got this firmware directly from a 2510a drive. That drive itself only have 2mb buffer. Not sure if it's the real 2510a drive at I got it from "underground" from someone who got it directly from the drive manufacturer factory. That drive does not have any label on it. So I am skecptical myself. But with this drive, NERO 6 shows in the lower bar for burning up to 9GB!!

Then I sold this 2510a drive. Manage to extract the firmware and apply it on my 2500a. At that time, my 2500a drive was using herrie's 1.06b7 firmware.

BTW, in the firmware that "The Dangerous Brothers" posted, what does "with patched binaries" means?
